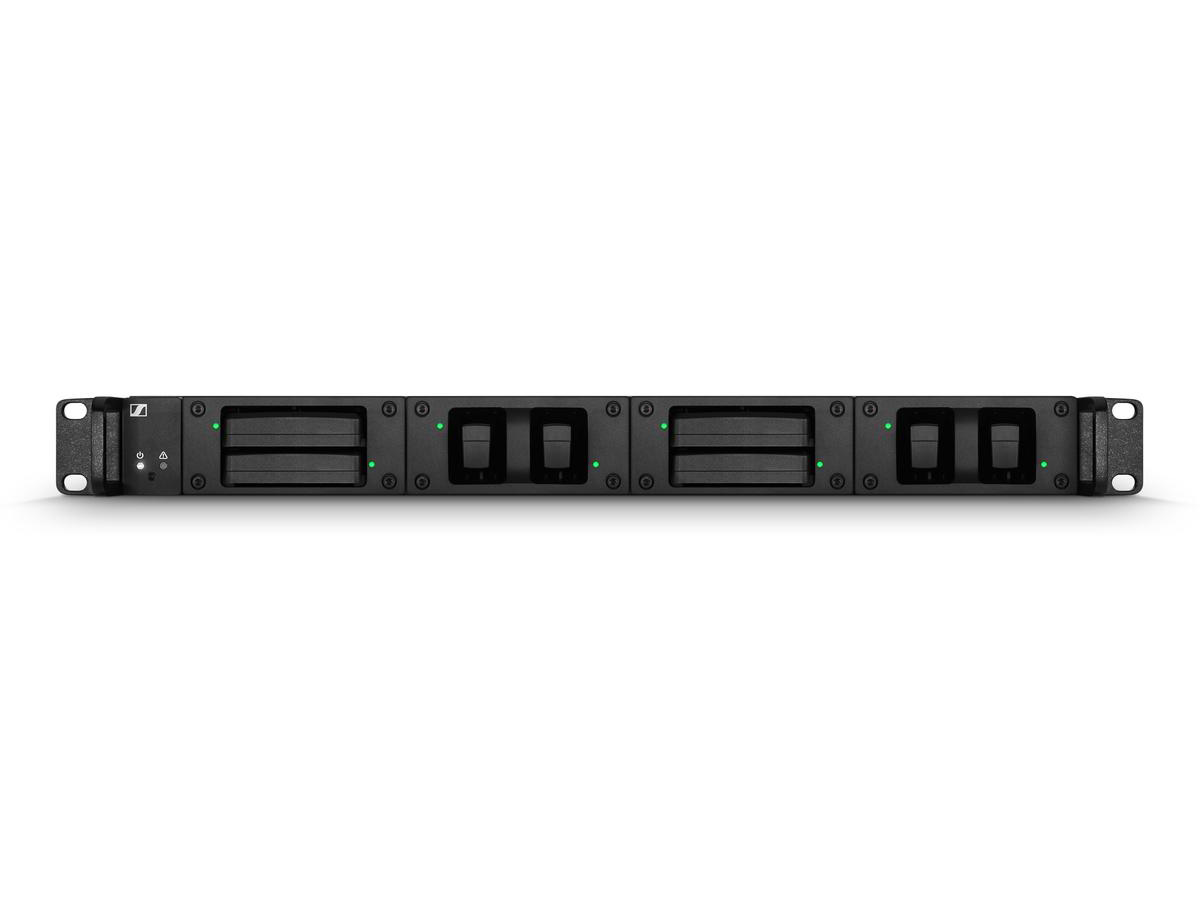

Sennheiser L6000 | ladestasjon for opptil 4 x LM6060/LM6061, 19"

Prev
Next
650-01603 650-01603_1
L 6000 expands the Digital 6000 and Digital 9000 series with a practical and intelligent charging station. Up to four modules can be fitted as needed with two charging ports each for bodypack or handheld transmitter batteries. Three-color LEDs simplify the quick overview of the charging status. Can also be controlled via WSM software.
Tilgjengelighet: Loading...
Fabrikant: Sennheiser
Tilgjengelighet: Ikke på lager. Kontakt oss for leveringstid.
LydRommet SKU: 650-01603
Fabrikantens SKU: 507300
EAN: 4044155214826
11 790,00 NOK
decrease increase
Practical, central, intelligent: The 19 inch 1 RU L 6000 charging station delivers power centrally and directly in the rack. Up to four freely selectable charging modules can accommodate two bodypack or handheld battery packs each (a total of 8 charging ports for battery packs BA 60, BA 61 or BA 62). Three-color LEDs give a quick overview of the charging status. The intelligent control system prevents heat buildup and also offers a mode that optimally charges the batteries for extended storage periods. The charging station L 6000 has a modular construction and is futureproof: Charging stations for future battery pack types can simply be retrofitted.

Extensive details regarding temperature, remaining charging time, run times, charging cycles and battery quality can be retrieved via the Wireless Systems Manager (WSM).

Key Features

  • 19 inch charging station in 1 RU

  • Flexible configurations with loading modules for handheld transmitters or bodypack battery packs (Digital 6000 and Digital 9000)

  • Quick overview of charging status with three-color LEDs

  • Intelligent charging control with four fans for optimum cooling

  • Storage mode keeps battery packs in optimum charge condition for longer storage periods

  • Integrates into the Wireless Systems Manager


Specifications
  • Dimensions
    44 x 483 x 373 mm
  • Weight
    5.1 kg
  • Charging time
    BA 60 80 %: approx. 1:15 h (approx. 4:45 h op30 erating time) 100%: approx. 2:h
    BA 61 80 %: approx. 1:45 h (approx. 5:00 h operating time) 100%: approx. 3:15 h
  • Power consumption
    Max. 85 W
    Min. 1 W
  • Power supply
    100 - 240 V AC, 50/60 Hz
  • Capacity
    Up to 8 battery packs (BA 60 and BA 61) via 4 exchangeable charging modules (LM 6060 and LM 6061)
Practical, central, intelligent: The 19 inch 1 RU L 6000 charging station delivers power centrally and directly in the rack. Up to four freely selectable charging modules can accommodate two bodypack or handheld battery packs each (a total of 8 charging ports for battery packs BA 60, BA 61 or BA 62). Three-color LEDs give a quick overview of the charging status. The intelligent control system prevents heat buildup and also offers a mode that optimally charges the batteries for extended storage periods. The charging station L 6000 has a modular construction and is futureproof: Charging stations for future battery pack types can simply be retrofitted.

Extensive details regarding temperature, remaining charging time, run times, charging cycles and battery quality can be retrieved via the Wireless Systems Manager (WSM).

Key Features

  • 19 inch charging station in 1 RU

  • Flexible configurations with loading modules for handheld transmitters or bodypack battery packs (Digital 6000 and Digital 9000)

  • Quick overview of charging status with three-color LEDs

  • Intelligent charging control with four fans for optimum cooling

  • Storage mode keeps battery packs in optimum charge condition for longer storage periods

  • Integrates into the Wireless Systems Manager


Specifications
  • Dimensions
    44 x 483 x 373 mm
  • Weight
    5.1 kg
  • Charging time
    BA 60 80 %: approx. 1:15 h (approx. 4:45 h op30 erating time) 100%: approx. 2:h
    BA 61 80 %: approx. 1:45 h (approx. 5:00 h operating time) 100%: approx. 3:15 h
  • Power consumption
    Max. 85 W
    Min. 1 W
  • Power supply
    100 - 240 V AC, 50/60 Hz
  • Capacity
    Up to 8 battery packs (BA 60 and BA 61) via 4 exchangeable charging modules (LM 6060 and LM 6061)
*
*
*
