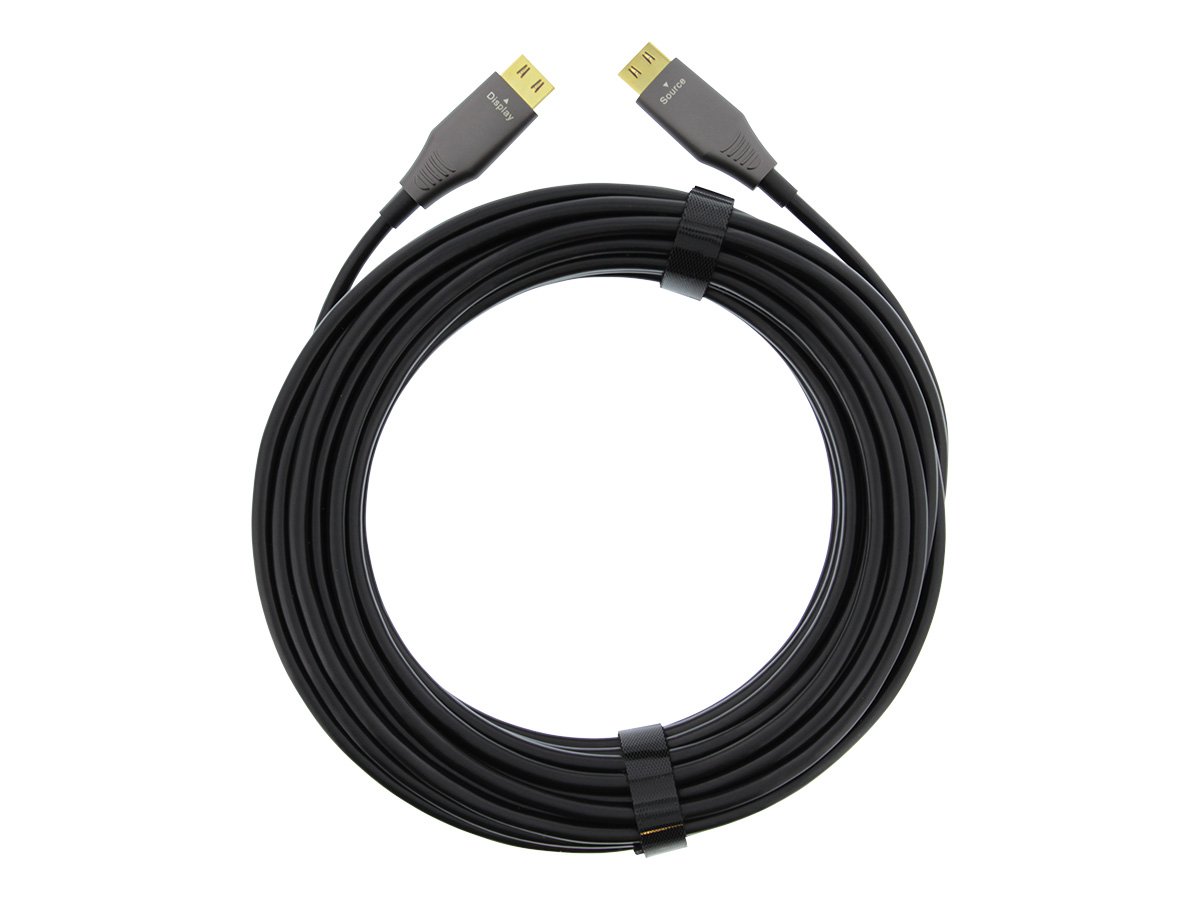

HDMI 48G AOC (Active Optical Cable), 15m | K/8K@60Hz 4:4:4 and full bandwidth of 48Gbps. Powered by the HDMI source device. No external power supply needed. Available in 15m, 30m and 60m lengths. • 4K/8K@60Hz 4:4:4 and full bandwidth of 48Gbps. • Proprietary Low Power High Bandwidth Chipset. • EMI (electromagnetic interference) protection. • Powered by the HDMI source device. No external power supply needed. • Connector locking mechanism for secure installation. • Durable and strong. • Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM) • Quick Frame Transport (QFT). • Supports Dynamic HDR and eARC.
Tilgjengelighet: Loading...
Tilgjengelighet: Ikke på lager. Kontakt oss for leveringstid.
LydRommet SKU: 670-90401
Fabrikantens SKU: HDMI-M/M-AOC-15
EAN: 5706470133709
Features:
- 4K/8K@60Hz 4:4:4 and full bandwidth of 48Gbps.
- Proprietary Low Power High Bandwidth Chipset.
- EMI (electromagnetic interference) protection.
- Powered by the HDMI source device. No external power supply needed.
- Connector locking mechanism for secure installation.
- Durable and strong.
- Variable Refresh Rate (VRR), Auto Low Latency Mode.
- (ALLM), Quick Frame Transport (QFT).
- Supports Dynamic HDR and eARC.
Spesifikasjoner:
Key Features |
Models | HDMI-M/M-AOC-15 HDMI-M/M-AOC-30 HDMI-M/M-AOC-60 |
Protocol specification | HDMI 2.1 & HDMI 2.0 & HDMI 1.4 |
Video resolution | Up to 8K@60Hz 4:4:4 |
Transmission speed | 48Gbps(12Gbps per channel) |
Connector |
Source | HDMI Type A Male (Gold plating) |
Display | HDMI Type A Male (Gold plating) |
Cable |
Cable specifications | 1C+(2c*30#+DA)+3C*28#+2C*24#+F+AL+B |
Optical fiber specifications | 4*Multi-mode optical fiber |
Available lengths | HDMI-M/M-AOC-15:15meters HDMI-M/M-AOC-30:30meters HDMI-M/M-AOC-60:60meters |
Outer sheath material | PVC |
Outer sheath color | Black |
Outer diameter | 5.2mm±0.1mm |
Cable bending radius | 6mm |
Connector max pulling strength | 150N (15kg,33lbs) |
Cable max pulling strength | 500N (50kg,110lbs) |
Environment |
Operating temperature | -20℃ to +70℃ |
Storage temperature | -40℃ to +80℃ |
Power |
Input voltage | +5V |
Energy consumption | ≤500mW |
Attention |
Please avoid excessive bending of the optical fiber during use, please refer to the bending radius for details. |
